• Fiberlaser.

    Working principle.

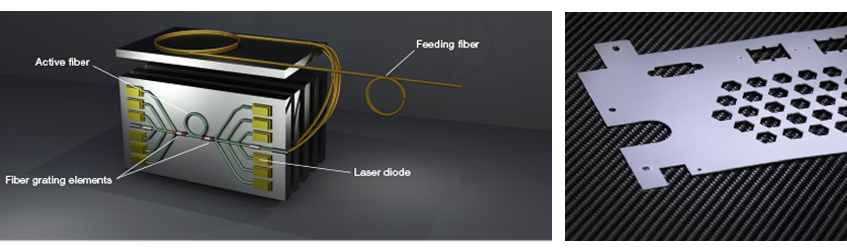

    High-performance fiber lasers have a modular design. In a Fiber laser module, a number of laser diodes “pump” the “active fiber” and thus generate a laser beam. Individual Fiber laser modules are grouped together and the combined laser beam is then guided via a flexible fiber optic cable – the feeding fiber – from the laser source to the processing head of the laser cutting system.

  • Miracle of efficiency
    Owing to the high conversion efficiency of the Fiber laser, you can slash your electricity bill. The energy efficiency achieves values of between 40 and 50% – exceptional for laser technology.

  • Cutting operating costs with energy-saving
    Control and drive units Energy savings have been achieved with perfectly matched Mitsubishi Electric control and drive units.

  • ECO mode
    During idling, the intelligent ECO mode switches step-by-step into standby. In standby mode, costs can thus be cut by up to 70%. Reactivation of the laser system takes approx. one minute.

  • From thin to thick and back again?

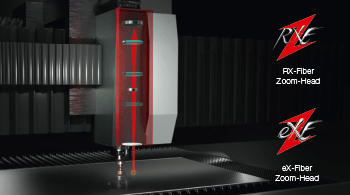

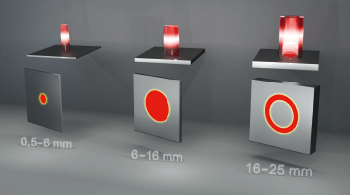

  • The Zoom Head – adjustment in record time
    Anyone constantly switching between sheet material of different thicknesses wants to resume cutting as quickly as possible – and without compromising on cutting quality. The Zoom Head developed by Mitsubishi Electric delivers speed and flexibility – for many years to come.

  • The optics are hermetically sealed to protect them from contamination during the rough and tumble of everyday operations. The only thing you notice is that everything runs smoothly.

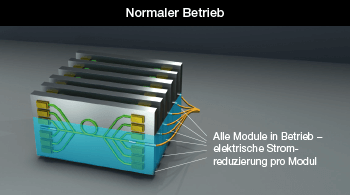

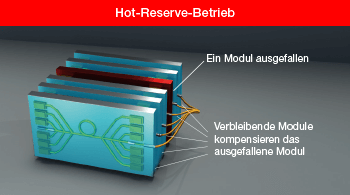

  • Monitoring alone is not an assurance

    Has a Fiber laser module failed? Has the machine stopped running? Not with the Hot-Reserve!
    In normal operation the laser modules are operated at up to 80 % of maximum possible power. Should a laser module ever fail, the nominal laser power can still be achieved by raising the power of the remaining modules accordingly.

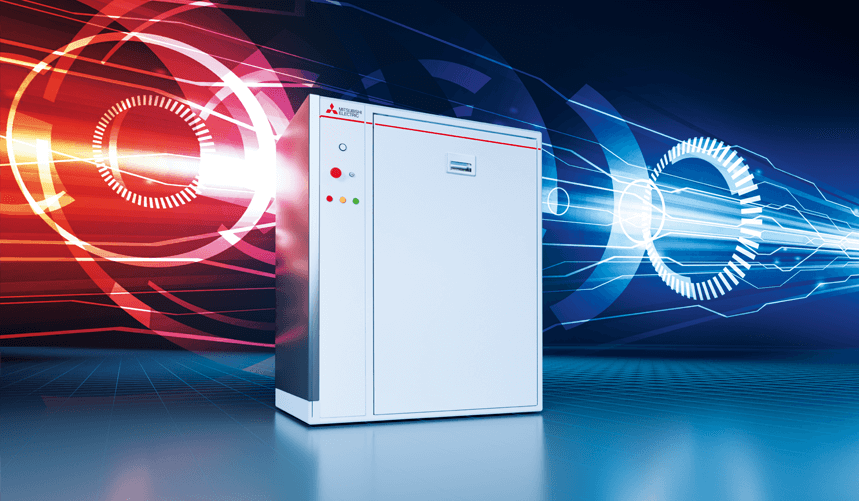

  • Exceptional beam quality

    is the fundamental requirement.

    Anyone constantly switching between sheet material of different thicknesses wants to resume cutting as quickly as possible – and without compromising on cutting quality. the ZoomHead developed by Mitsubishi electric delivers speed and fl exibility – for many years to come. combined with the high quality beam from Mitsubishi electric’s own laser source, piercing time dropped dramatically by up to 60 %, making it possible to pierce a 25 mm thick mild steel within 0.8 seconds (8 kW fi ber laser source).

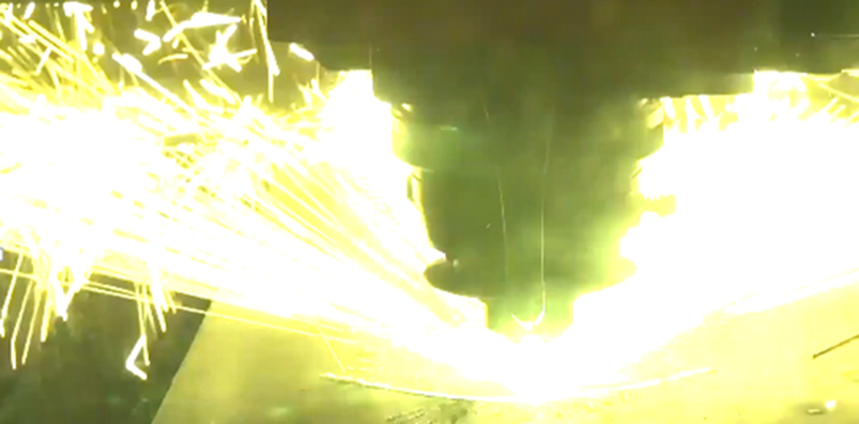

  • High Peak Piercing

    Shorter piercing time for medium-thick and thick sheet metal

    Piercing time is an important part of the overall cutting time – especially when there are hundreds of parts to be cut from a 20 or 25 mm thick mild steel plate. High Peak Piercing significantly reduces piercing time in thick mild steel.

    Piercing times (8 kW fiber laser source)

    • Sheet thickness 20 mm: 0.2 sec (88 % reduction)
    • Sheet thickness 25 mm: 0.8 sec (77 % reduction)


Products

  •    4050 x 2060 mm
  •    4 / 6 / 8 kW

  •    3050 x 1525 mm
  •    4 / 6 / 8 kW

  •    3050 x 1525 mm
  •    2,7 kW

  •    3050 x 1525 mm
  •    4,5 / 6 kW

  •    4050 x 2060 mm
  •    4,5 / 6 kW
