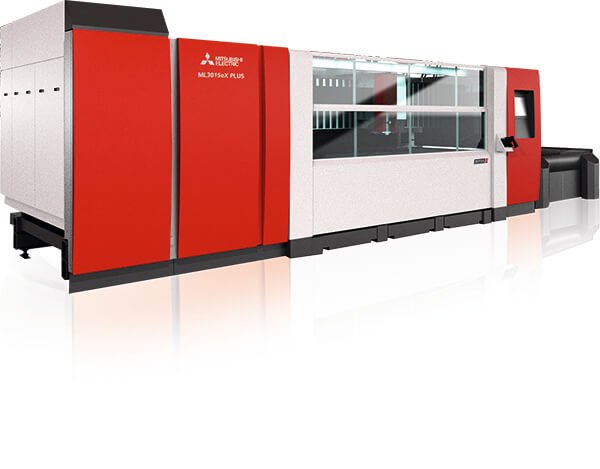

Laser cutting system eX Plus

    Processing Performance

    Laser cutting machines of the eX Plus series are among the most advanced laser cutting machines in the world. Based on the 5th generation of three-axis cross-flow resonators, they ensure maximum performance with materials measuring 3,050 x 1,525 mm and thicknesses from 0.5 to 28 mm.



    Advantages of the eX Plus Series:

    • High Performance
    • Excellent Cutting Quality
    • Reliability
    • Low Operating Costs
    • Easy Handling

    Technical Data

    Machine designFlying optics
    Control15” Mitsubishi-Electric full-touch screen
    Axis travel pathX-axis 3,100 mm
    Y-axis 1,565 mm
    Z-axis 150 mm
    Repeat accuracy± 0.01 mm
    Max. sheet size3,050 x 1,525 mm
    Max. weight per sheet930 kg
    Dimenstions
    Laser cutting system incl. pallet changer10,210 x 3,130 mm
    Laser sourceintegrated
    Weight
    Laser cutting system incl. laser source8,500 / 8,700 kg
    Pallet changer2,100 kg
    Laser
    Laser type45CF-R / 60XF
    Laser power4.5 / 6 kW
    Pulse power5 / 7 kW
    Processing headPH-XS
