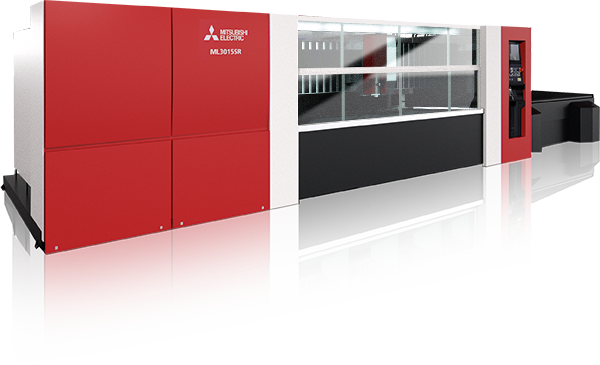

Laser cutting system SR CrossFlow

    Processing Performance

    Laser cutting systems of the SR series are based on three-axis CrossFlow resonators. They guarantee maximum performance when processing materials with dimensions of 3,050 x 1,525 mm and a thickness of 0.5 to 20 mm. The SR machines can be equipped with an automatically interchangeable two-pallet table or a manual single-pallet table.



    Advantages of the SR Series:

    • High Performance
    • Excellent Cutting Quality
    • Reliability
    • Low Operating Costs
    • Easy Handling

    Technical data

    Machine design Flying optics
    Control 15” Mitsubishi-Electric full-touch screen
    Axis travel path X-axis 3,100 mm
    Y-axis 1,565 mm
    Z-axis 150 mm
    Repeat accuracy ± 0.01 mm
    Max. sheet size 3,050 x 1,525 mm
    Max. weight per sheet 930 kg
    Dimensions
    Laser cutting system incl. pallet changer 10,210 x 3,130 mm
    Laser source integrated
    Weight
    Laser cutting system incl. laser source 7,500 kg
    Pallet changer 2,100 kg
    Laser
    Laser type 32XP
    Laser power 2.7 kW
    Pulse power 3.2 kW
    Processing head PH-XS
