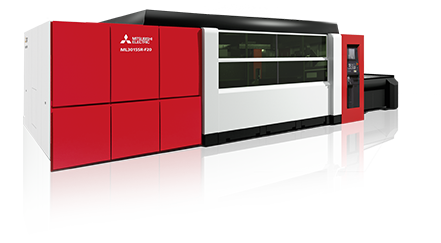

Laser cutting systems SR-F
For cost-effectively cutting thin sheet metal
Advantages of the SR-F series:
high performance
reliability
safety
low running costs
working comfort
easy handling
Technical data
| Machine data | |
|---|---|
| Machine design | Flying optics |
| Control | 15” Mitsubishi-Electric full-touch screen |
| Axis travel path | X-axis: 3.100 mm, Y-axis: 1.565 mm, Z-axis: 150 mm |
| Repeat accuracy | ± 0,01 mm |
| Max. sheet size | 3.050 x 1.525 mm |
| Max. weight per sheet | 930 kg |
| Dimensions and Weight | |
|---|---|
| Laser cutting system incl. pallet changer | 10.210 x 3.130 mm |
| Laser source | integrated |
| Laser cutting system incl. laser source | 8.600 kg |
| Pallet changer | 2.100 kg |
| Laser | |
|---|---|
| Laser type | F20 |
| Laser power | 2 kW |
| Processing head | PH-F2 |
